Tinfoil Setup Guide

Setup SGS with Tinfoil on your Nintendo Switch.

Prerequisites

• Nintendo Switch with CFW
• Tinfoil installed
• SGS server running
• SGS should be on the same network that your Nintendo Switch

Instructions

1. Find Server IP - Run ip addr show (Linux), ipconfig (Windows), or ifconfig (macOS)

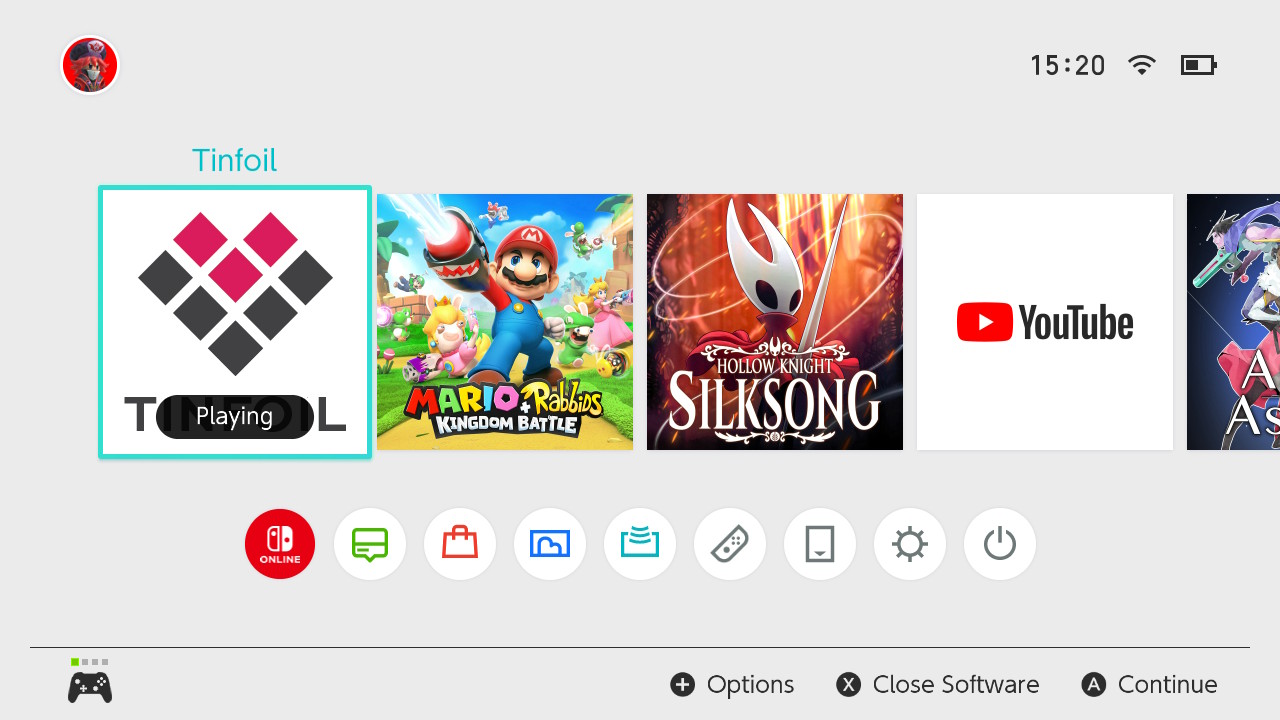

2. Open Tinfoil - Launch on your Switch

3. Add Source - Go to File Browser → Press the ➖ button add a new source

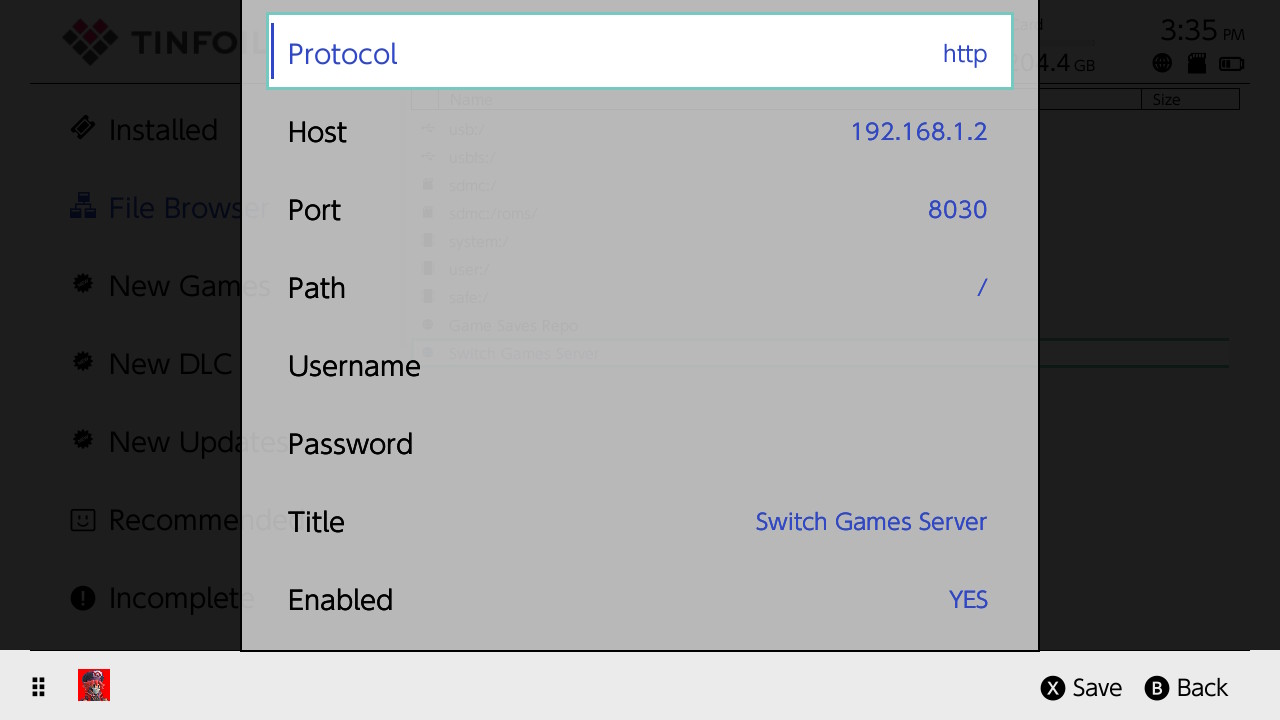

4. Configure:

   • Protocol: http
   • Host: YOUR_IP
   • Port: 8030
   • Path: / or /api/tinfoil
   • Title: Switch Games Server
   • Enabled: Yes

5. Save: Press X to save

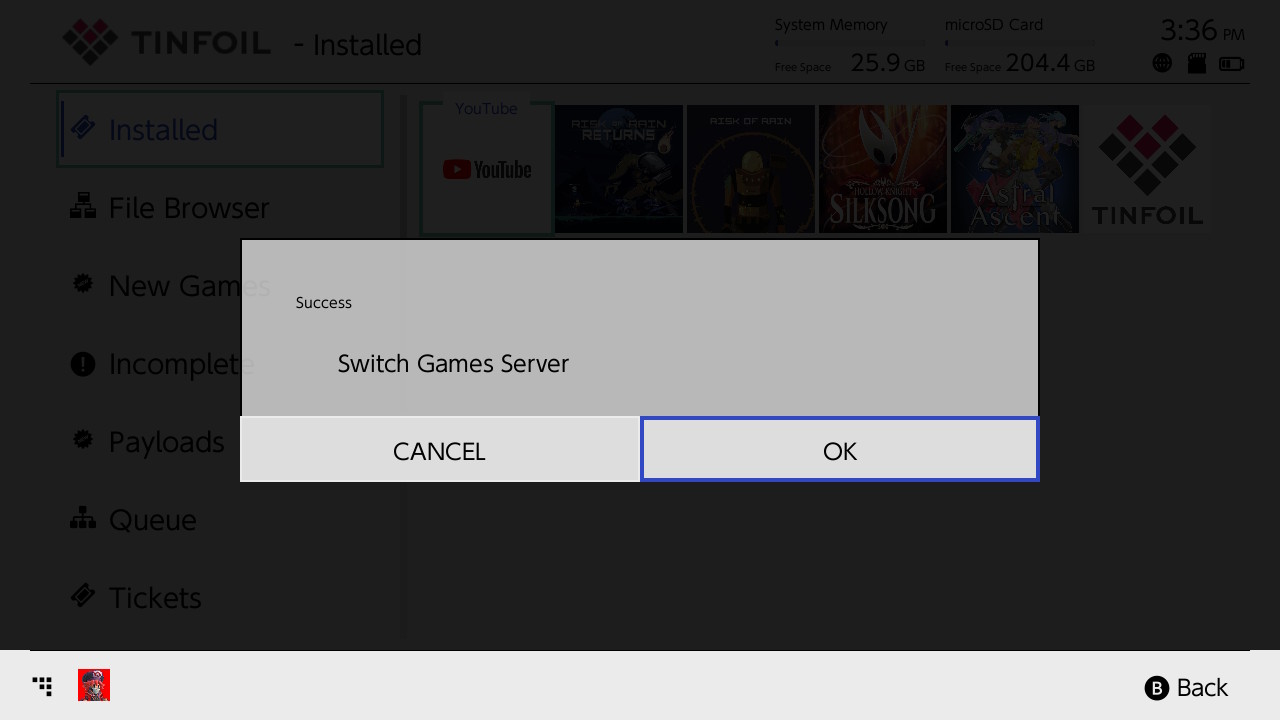

6. Success: You should see a success message with the text Switch Games Server

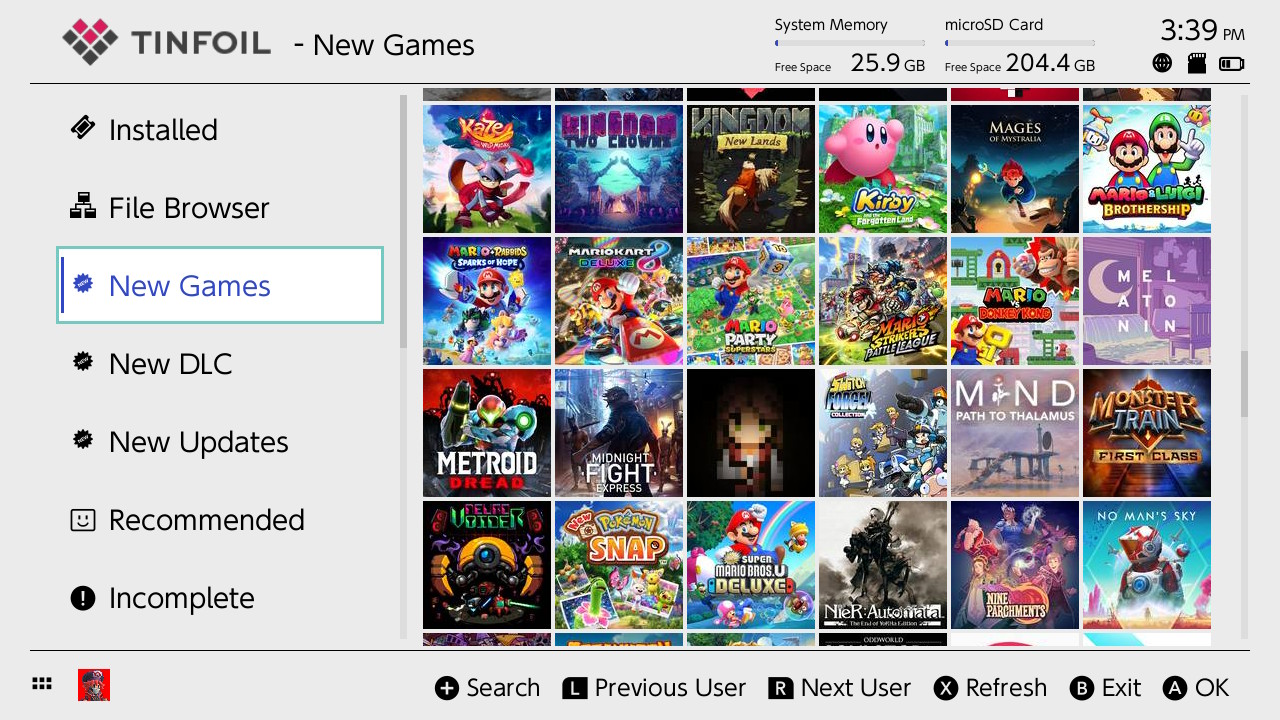

7. Browse: Depending on the content you've placed on the games directory, it should appear on New Games, New DLC or New Updates

Troubleshooting

• Connection Failed: Check network, firewall, server running
• No Games: Verify files in games/ folder with correct extensions

API Format

{
  "files": [
    {"url": "http://YOUR_IP:8030/games/example1.nsz", "size": 123456},
    {"url": "http://YOUR_IP:8030/games/example2.nsz", "size": 123456}
  ],
  "success": "Switch Games Server"
}
